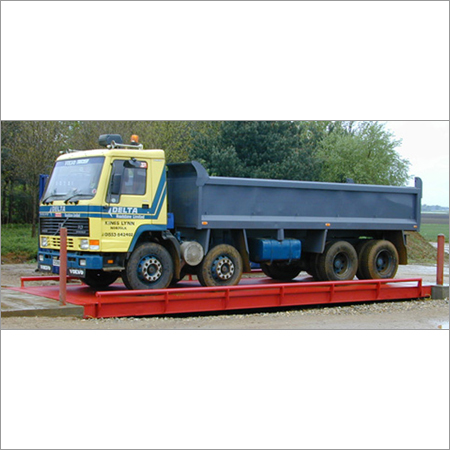

Orthotropic (U-Beam) Weigh Bridge
The Orthotropic Weigh Bridge is a creative invention for weigh bridges, offers excellent structural characteristics. Our manufacturing unit equipped with state-of-the-art machinery and advanced technology, encompasses an area of 30000 Sq. Ft. For manufacturing truck scale structures, we assure you to provide the highest quality standard specifications. We have a team of skilled professionals, they help us in fulfilling the requirements of our precious customers.
Features of Orthotropic (U-Beam) Weigh Bridge :
Closed Orthotropic Beams
Customized orthotropic beams designed precisely for the purpose of truck scale application. These orthotropic beams are a global norm today and India - leaders like Prabhat India are aggressively using these designs across all over India.
The structure incorporates epoxy based paint with dual paint coats to give a superior finish and long life to the structure to give excellent results in the long run.
Designing & Testing
Designing superior structures with precise designing using latest CAD and CAE procedures. Non Destructive Test methods are used to test the strength of each fabricated structure in actual loaded condition.
Superior Quality Material
Branded steel of SAIL / ESSAR / TATA-BSK Material with high tensile characteristic is use in fabrication. High quality mig welding is done for joining the closed orthtropic beams with top plate. This assures better performance in long run.
Fast & Easy Installation
No nut-bolts is required for joining the modules of the structure. Just need to place the modules in the column provided at the end of modules.
Closed orthotropic design does not allows air & water to come inside, thus there is no chance of corrosion inside the beam.
Advanced technical capabilities
Efficient and robust material
Progressive management skills
Available Size :
Platform Size (M x M)
9.0m x 3.0m
60 T/80 T
12.0m x 3.0m
80 /100 T
13.5m x 3.0m
80 /100 T
15.0m x 3.0m
16.0m x 3.0m
18.0m x 3.0m
