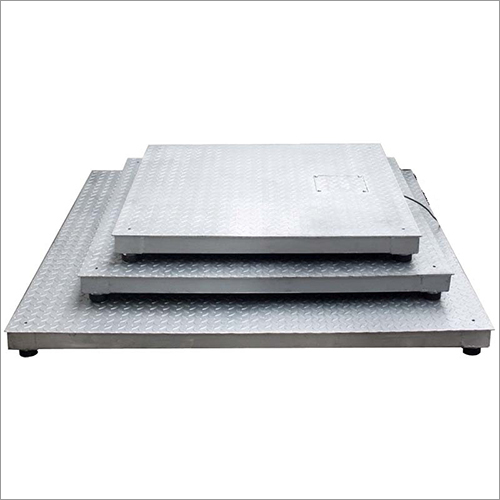

Dormant Platform Scales

Dormant Platform Scales
Dormant Platform Scales
Product Code : PI-01
Brand Name : PRABHAT INDIA
Product Description
Our company is one of the leading Manufacturer, Supplier and Service Provider of Dormant Scale. The offered grade fabricated with accurately cut and welded components. In addition, to test the strength of each fabricated structure, Non Destructive Test methods used. The Dormant Scale is specially designed for extensive use applications of concentrated loading. Our products are highly demanded due to reliability, accuracy and stability.

Features
  • Precisely designed
  • Heavy duty construction
  • Tested up to 200 % of loading capacity
  • High Load Bearing Capacity
  • Powder coated structure for environmental protection
Standard Scope of Supply
  • 4 nos. Shear Beam Load Cells.
  • Compatible Junction Box.
  • Powder coated platform with checkered plate top.
  • Universal leveling foot for each load cell.
Optional Accessories
  • Customized indicators available as per requirement.
  • Extra cable for indicator.
  • Indicator stand.
  • Remote Display with RS-232 serial interface.

Technical Specification :

Available Models :

  • Capacity- 500 Kg to 10,000 Kg
  • Dimension- 1000x1000 to 3000x3000 (mm)

Available Sizes

S.NO.

Platform Size (m x m)

Capacity (T)

1

1000mm x 1000mm

1T/2T

2

1000mm x 1000mm

3 T

3

1000mm x 1000mm

5 T

4

1200mm x 1000mm

1T/2T

5

1200mm x 1000mm

3 T

6

1200mm x 1200mm

1T/2T

7

1200mm x 1200mm

3 T

8

1200mm x 1200mm

5 T

9

1500mm x 1000mm

1T/2T

10

1500mm x 1000mm

3 T

11

1500mm x 1200mm

1T/2T

12

1500mm x 1500mm

1T/2T

13

1500mm x 1500mm

5 T

14

1800mm x 1200mm

2T/3T

15

1800mm x 1800mm

2T/3T

16

1800mm x 1800mm

5 T

Note:- Customized sizes and capacities are also offered as per requirements.
